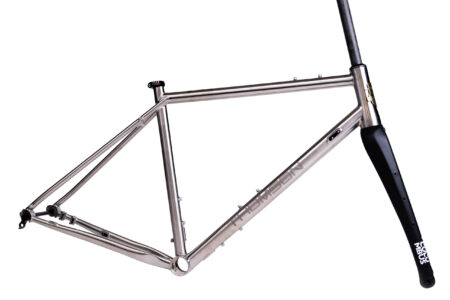

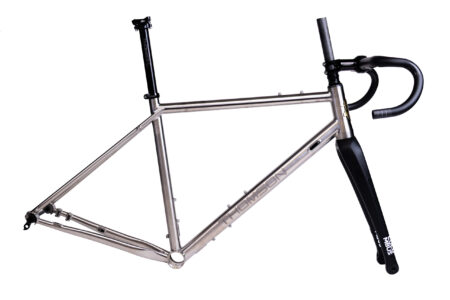

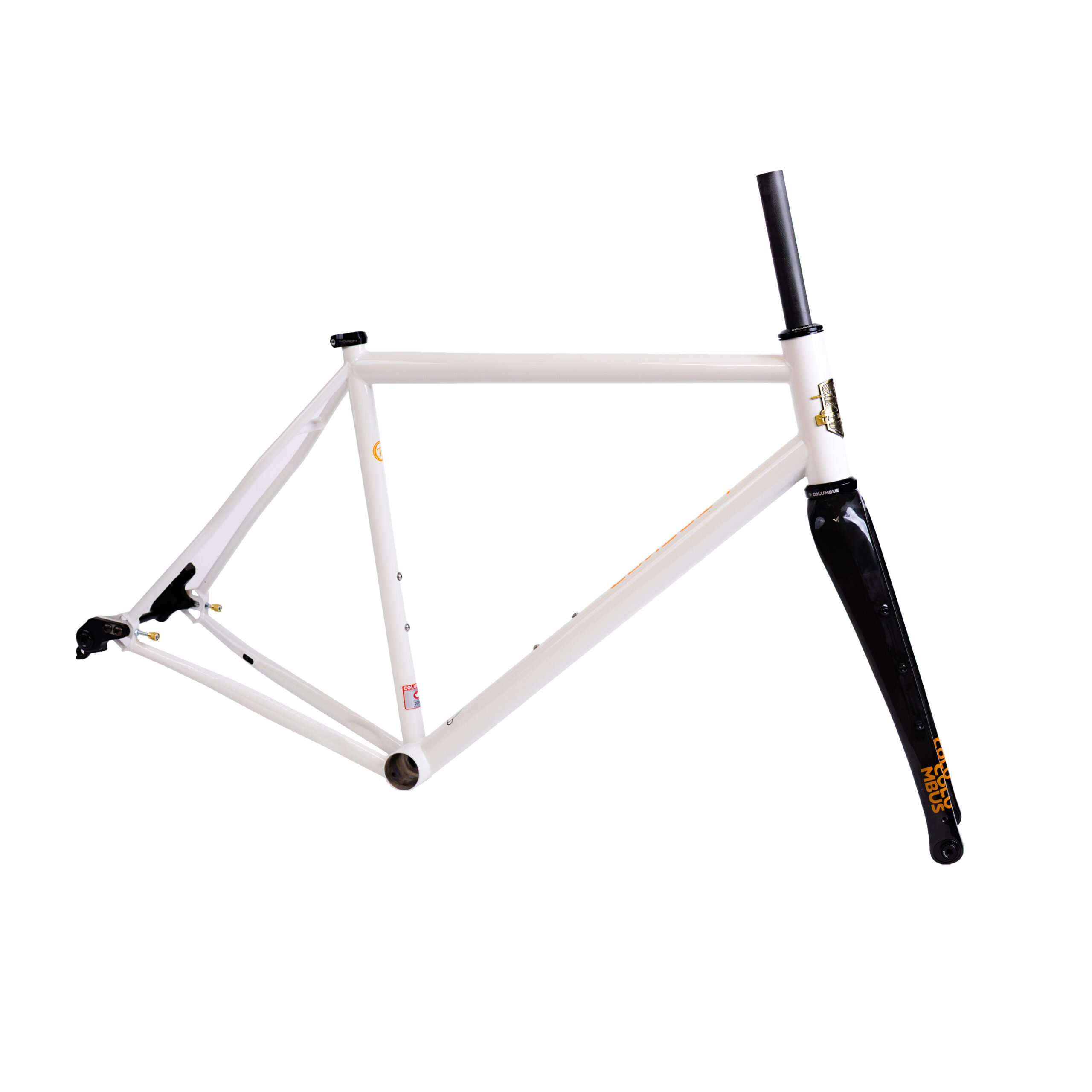

The Tomahawk Frameset

Introducing the Tomahawk: Precision-Crafted for Gravel Domination

We took all the great aspects of the Piedmont, refined the design, and moved production to our home state of Georgia. The Tomahawk is the ultimate gravel bike, handmade out of Columbus tubes to deliver unmatched performance and versatility. With 700C wheels and a max tire size of 47mm, this bike is engineered for speed and stability, ready to tackle everything from smooth pavement to rugged backcountry trails.

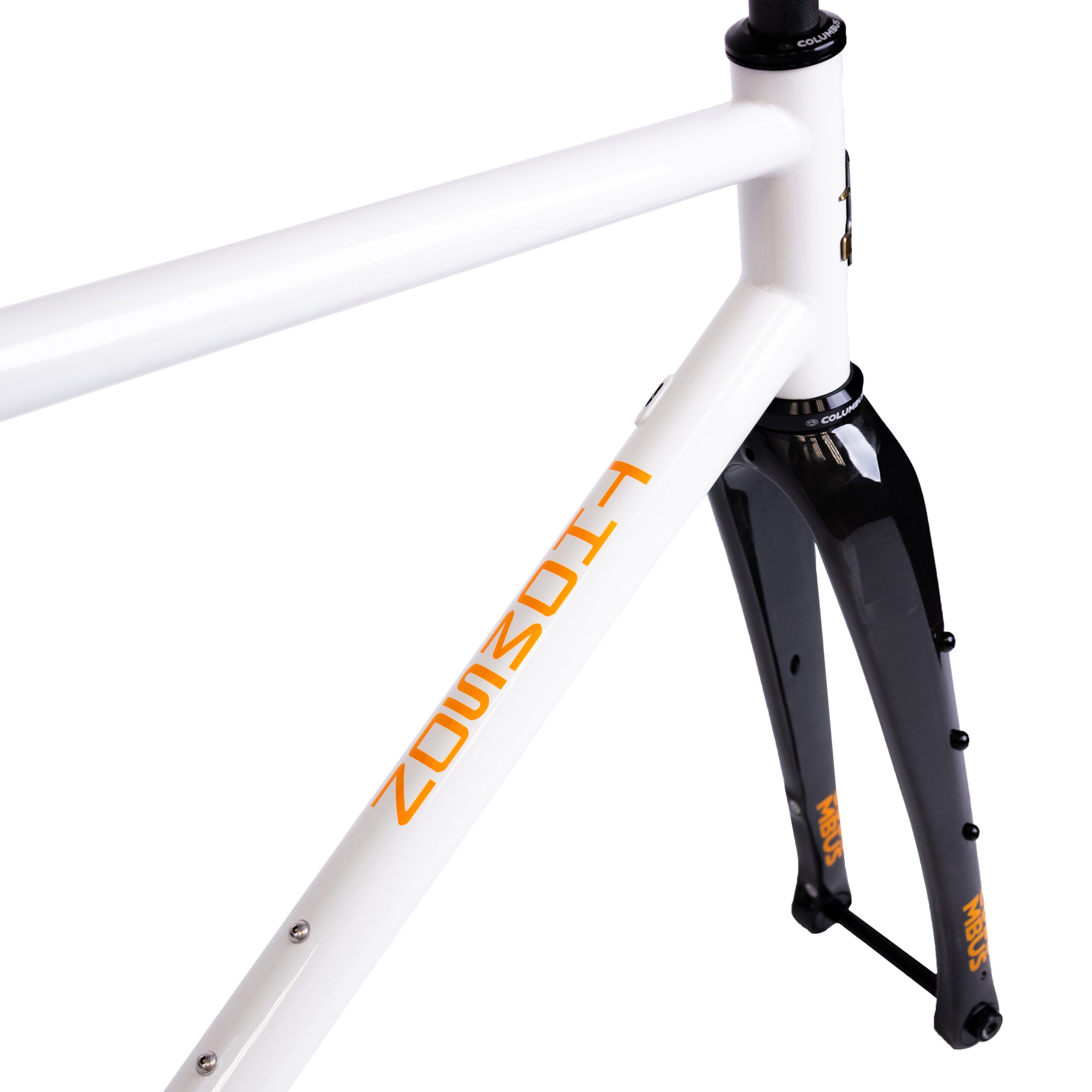

The Tomahawk is ready for the group set of your choice due to the 86mm T47  bottom bracket shell and being equipped with a SRAM UDH. The Tomahawk is compatible with SRAM Transmissions ensuring precise shifting and drivetrain durability, keeping you in control no matter the terrain.  The Columbus Cross Futura fork is the cherry on top, providing precise handling and smooth ride quality, perfectly balancing comfort and control.

With 435mm chainstays, the Tomahawk strikes the ideal balance between agility and stability, making it a dream to ride on technical terrain or long-distance routes. This bike is designed for those who seek adventure, whether you’re racing the clock or exploring new horizons.

The Tomahawk, like the Clermont frame, is also easy for the garage bike mechanic to build. The Tomahawk frame comes in two variations; one designed for mechanical drivetrains and one for wireless drivetrains. The Tomahawk with external cable routing is for those wishing to run mechanical groupsets. If wireless groupsets are your thing, select the Tomahawk with internal cable routing. This selection has internal routing through the downtube for a dropper and rear brake hose. However, the rear brake hose will always remain external on the chainstay.

Experience the Tomahawk—where craftsmanship meets cutting-edge design for a ride that’s fast, responsive, and endlessly fun.

	XS	S	M	L	XL
REACH	374mm	374mm	383mm	398mm	408mm
STACK	539mm	553mm	570mm	593mm	617mm
EFFECTIVE LENGTH	530mm	535mm	548mm	570mm	587mm
FRONT CENTER	602mm	607mm	616mm	640mm	658mm
WHEELBASE	1024mm	1029mm	1038mm	1063mm	1081mm
HEAD TUBE LENGTH	105mm	120mm	135mm	160mm	185mm
SEAT TUBE LENGTH	475mm	490mm	490mm	530mm	530mm
CHAINSTAY LENGTH	435mm	435mm	435mm	435mm	435mm
STAND OVER WITH 42mm TIRES	756mm	770mm	778mm	809mm	821mm
BB DROP	80mm	80mm	80mm	80mm	80mm
SEAT TUBE ANGLE	74°	74°	74°	74°	74°
HEAD TUBE ANGLE	70°	70°	70°	70°	70°
SEATPOST DIAMETER	27.2mm	27.2mm	27.2mm	27.2mm	27.2mm
FORK RAKE	52mm	52mm	47mm	47mm	47mm
AXLE TO CROWN	392mm	392mm	392mm	392mm	392mm
MAX TIRE SIZE	47c	47c	47c	47c	47c

The Thomson Tomahawk frame comes equipped with a Thomson Seat Post Collar, Columbus Futura Cross Plus fork, a Columbus headset, and front and rear axles.
