Dedacciai DCR Headset

Dedacciai

$70.00

Description

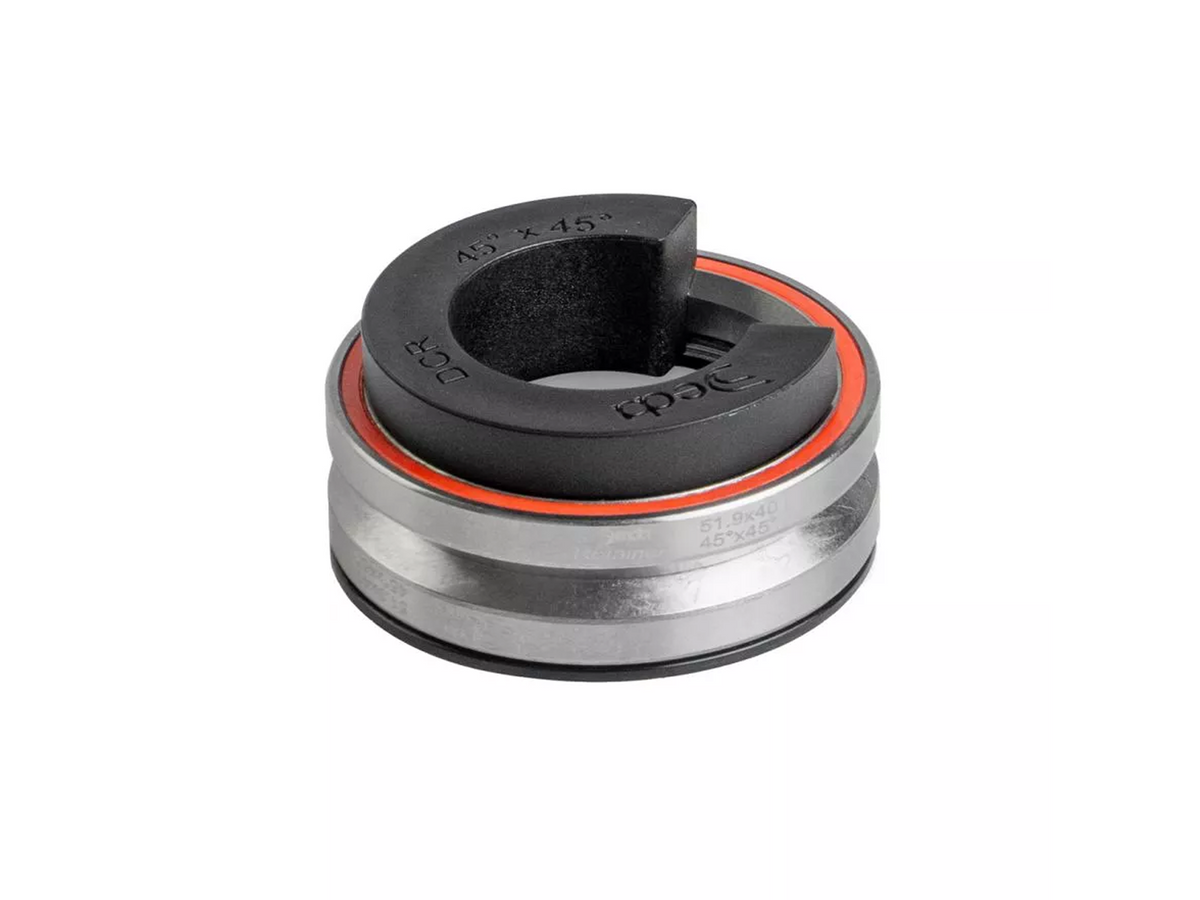

Integrated headset for DCR (Deda internal cable routing) system and compatible with Vinci, Alanera RS and Superbox stem. It allows the full integration of the cables through the headset bearing. The DCR system works with a standard tapered fork steerer (1-1/8” - 1.5”), but requires a 52mm (1.5”) upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The DCR topcover for Alanera RS (cod.HDRS-TC56), Superbox (cod. HDALADCRTC56) and Vinci (HDVCNTC56) is not included in the kit, but available to purchase separately.

Recommended for:

Road
Gravel

DOWNLOADABLE RESOURCES

Dedacciai DCR Headset

DCR Tech Specs

DCR & S-DCR Spare Parts Catalog

THE DETAILS

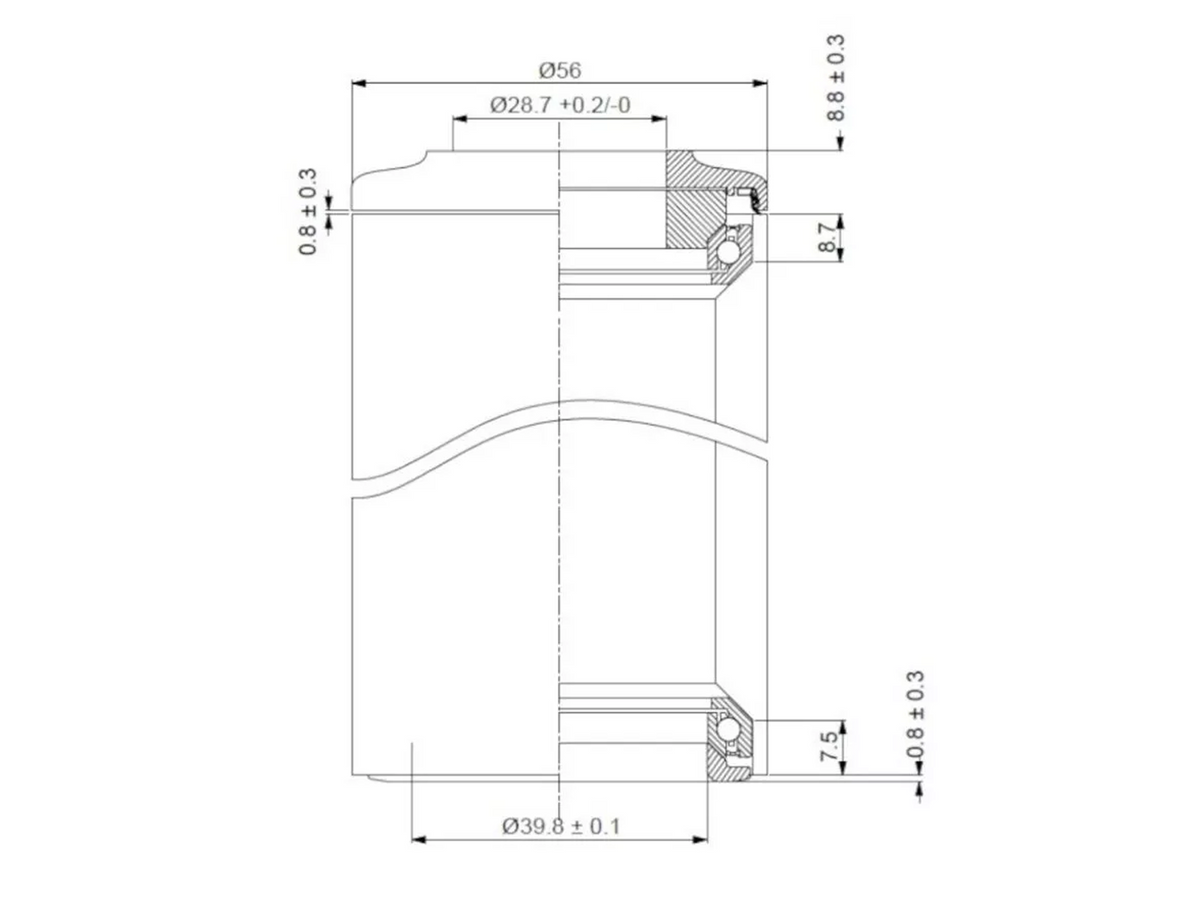

Dedacciai DCR Headset SPECS

Spec:

Headset Model: Integrated 1.5" - 1.5"

Bearings Type: Angular contact bearing; chrome steel

Bearings Size: Upper 51.9x40x8mm; lower 51.9x40x8mm

Contact Angle: Upper 45°x45°; lower 45°x45° (cod. HDDCR) or 36°x45° (cod. HDDCR-36)

Headtube: Ø 56.0mm

Fork Steerer: Tapered 1 1/8" (28.6mm) - 1.5" (38.10mm)

Top Cover: Ø 56mm

Crown Race (45°x45° version only): Ø 39.8mm aluminum

Stack Height: 9.6mm (8.8 + 0.8)

Weight: 80g

Note: Compatible with Ø 56mm frame headtube designed for 1.5" bearings (upper and lower). The DCR topcover for Alanera RS, Vinci and Superbox is not included in the kit, but available to purchase separately.
