Dedacciai Gera EDG DCR Fork

Dedacciai

$630.00

Description

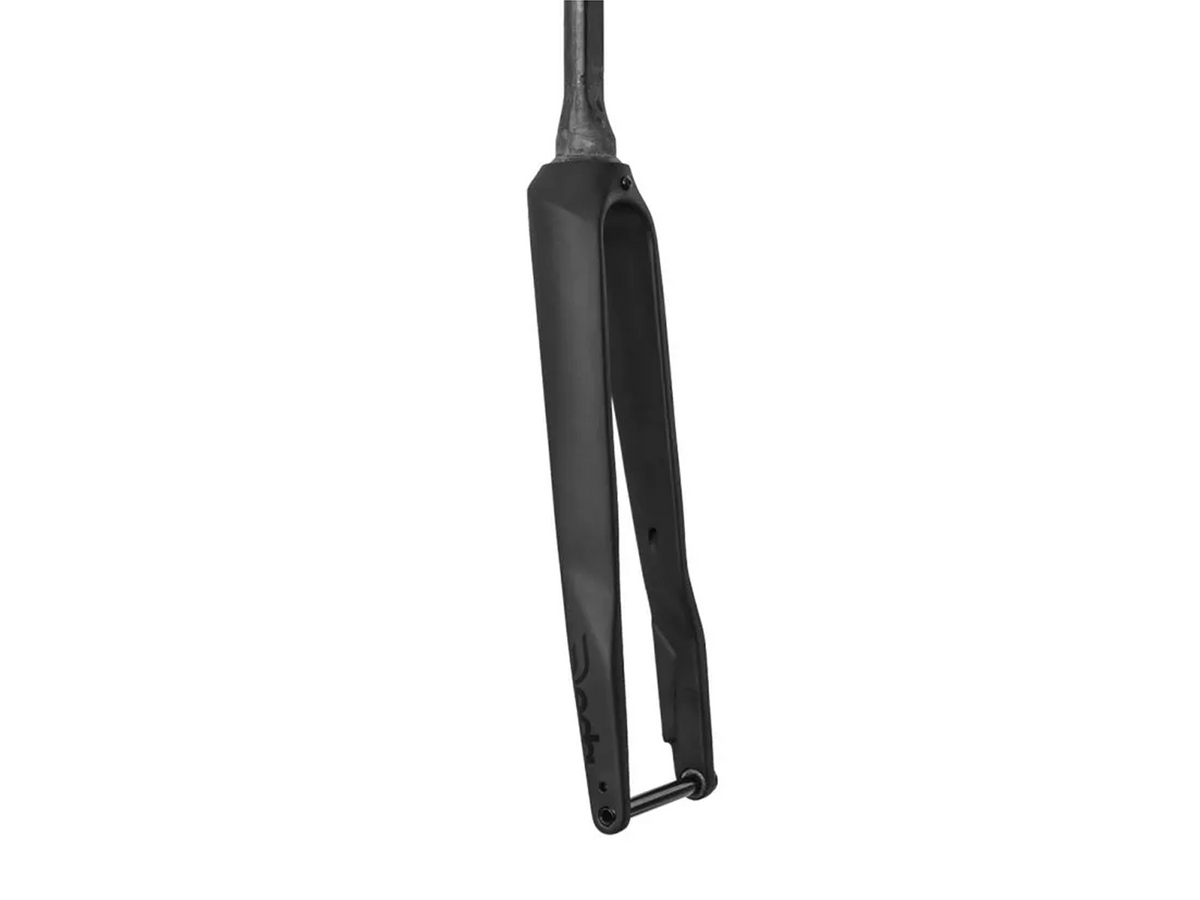

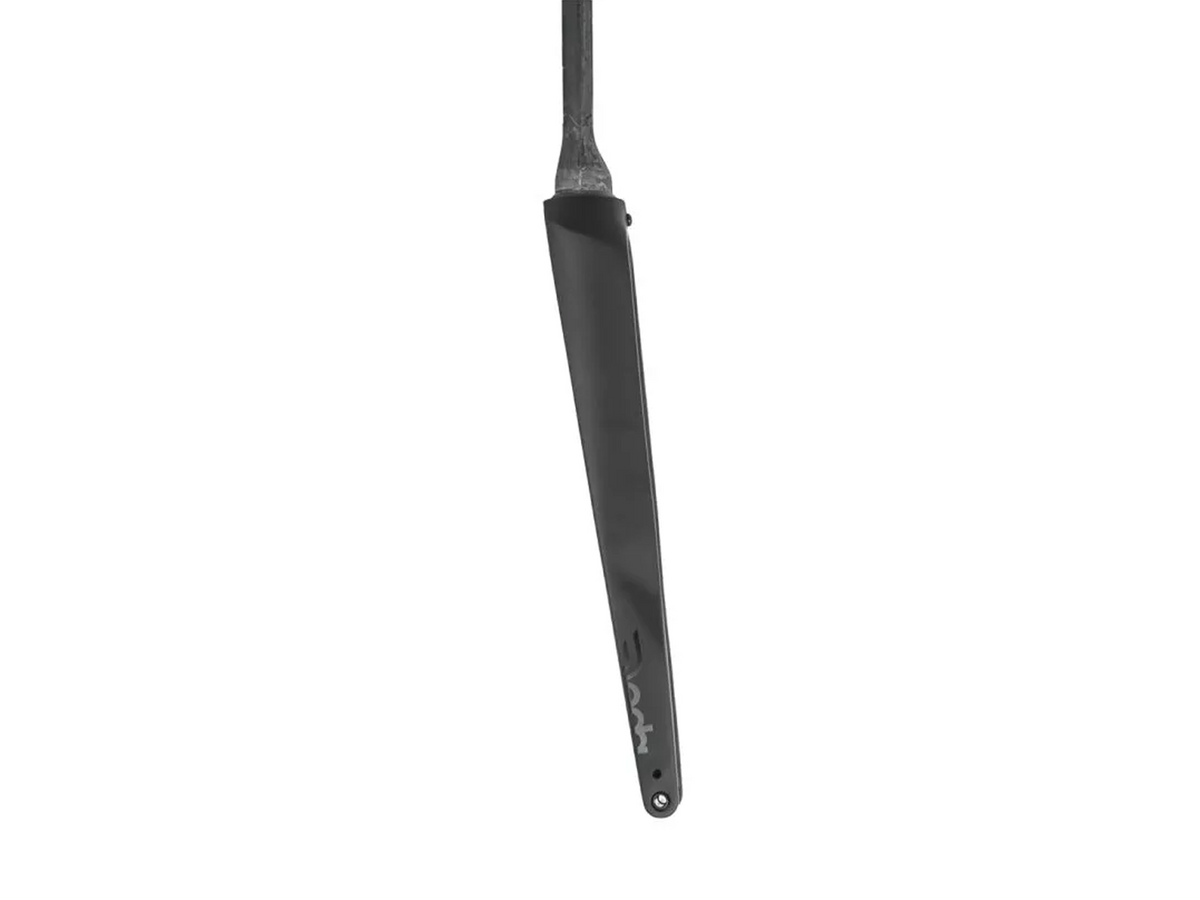

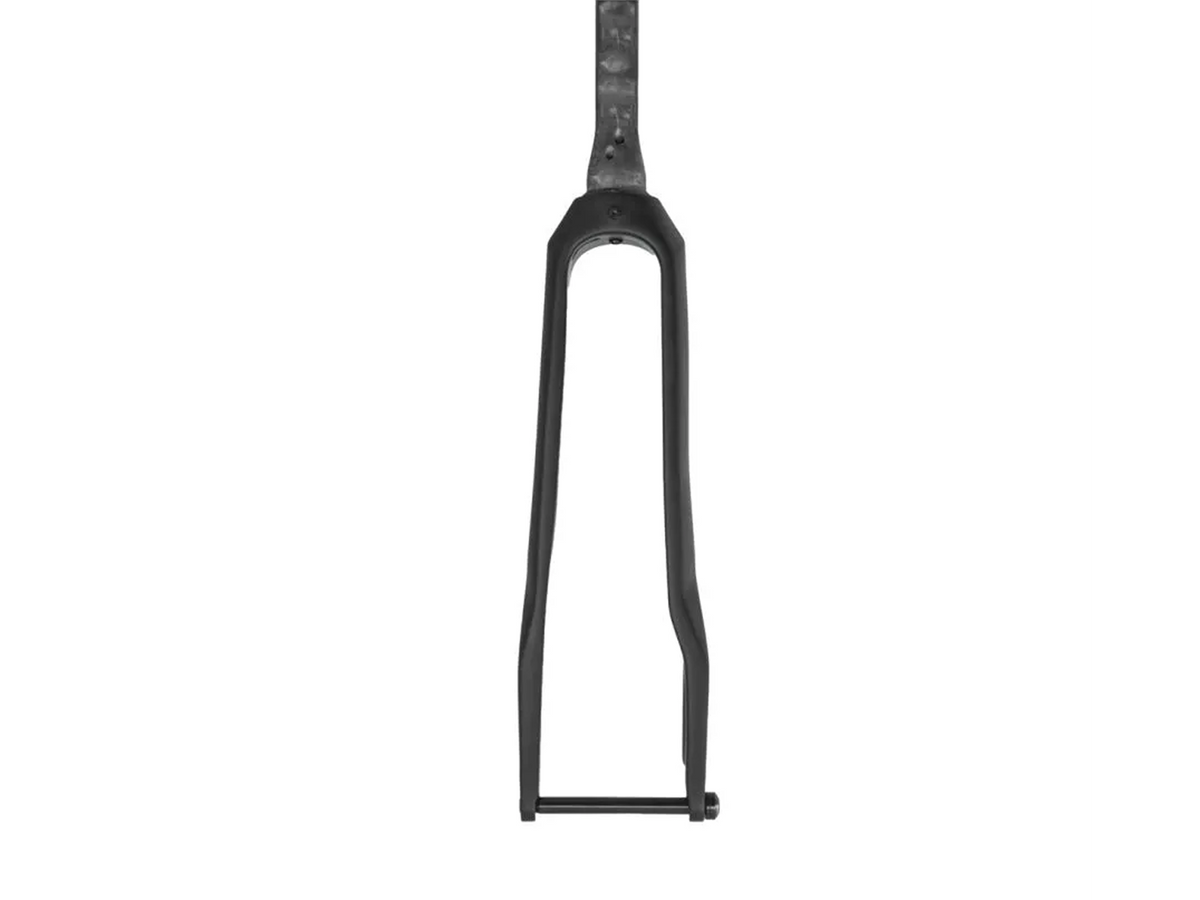

Gera EDG is a superlight gravel fork under 500 grams with a clean design and perfect for all road use. Straight blades for superior reactivity on fast gravel or paved roads. The first gravel fork fitting also a 180mm rotor disc and designed to allow the integration of the cables inside the frame thanks to a D-shape fork steerer and the DCR system. It is compatible with most of bicycle frames on the market, both carbon and metal. It features a full carbon construction with an integrated 45° crown race. Tire clearance up to 45mm (28”) or 50mm (27.5”). It is ready for dynamo hubs (i.e. SON®) for optimal integration of the electric cables inside the fork.

DOWNLOADABLE RESOURCES

Dedacciai Gera EDG DCR Fork

DCR Forks Use and Maintenance Manual

EDG Road, Allroad, Gera Curvy & Gera EDG Spare Parts Catalog

Gera EDG Tech Specs

THE DETAILS

Dedacciai Gera EDG DCR Fork SPECS

Spec:

Material: Full carbon fiber, UD finish

Fork Steerer: D-Shape 1" 1/8

Headset Compatibility: Upper bearing 1" 1/8; lower bearing 1.5". 45° integrated crown race

Steerer Length: 350mm

Axle-Crown Length: 398mm

Rake: 50mm

Axle Compatibility: 100x12mm thru-axle (included)

Crown Diameter: 56mm

Disc Brake Rotor Compatibility: Flat mount, 160mm or 180mm

Finish: UD carbon with POB logo

Accessories Included: Thru-axle (M12xP1.5x120), D-shape custom expander and topcap

Weight: 498g

Note: Fender mounts, ready for SON dynamo hub

Frames Compatibility: Any bicycle frame featuring internal cable routing system and fitting Deda DCR headset, Deda Classic 1 or tapered 1" 1/8-1.5" / 1" 1/4-1.5" / 1.5"-1.5"

Stems Compatibility: All Deda stems or stems with a large opening between the fork steerer and stem body to allow internal cable routing

Wheel and Tire Compatibility: 622x45 (28"x1.7"), 584x50 (27.5"x2.0"), depending on tire/rim manufacturer

Bearings Compatibility: Upper, headset/frame headtube with 1" 1/8, 1" 1/4 or 1.5"; Lower, 1.5" bearing; 45° contact angle bearing

Internal Cables Routing: With a standard stem up to 3 cables (two brake housing cables and mechanical/electronic shifting cable); with a DCR stem up to 4 cables (two brake housing cables and two shifting cables)

Minimum Tire Clearance at Fork Blade: 7mm (28"x1.7"), 6mm (27.5"x2.0")

Wheel Centering Tolerance: +/- 1.5mm
