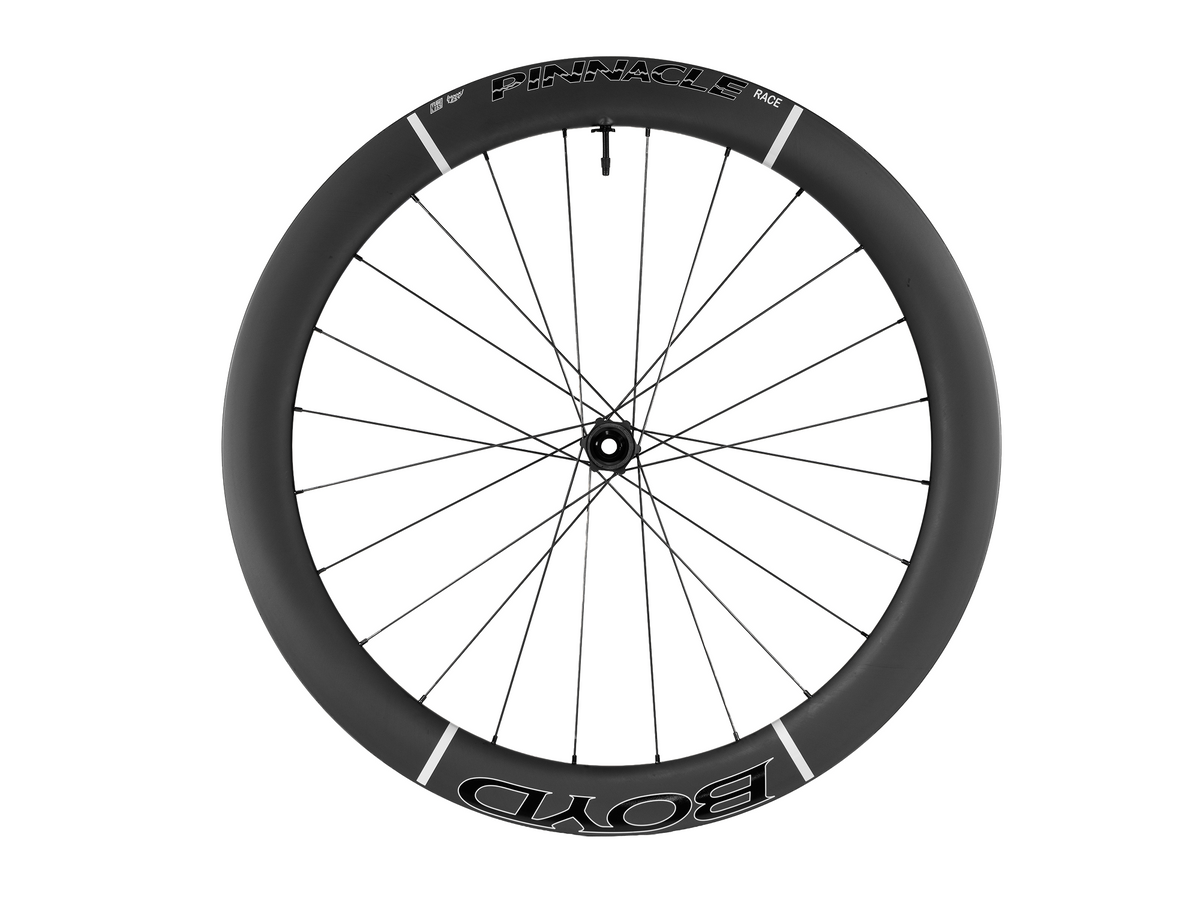

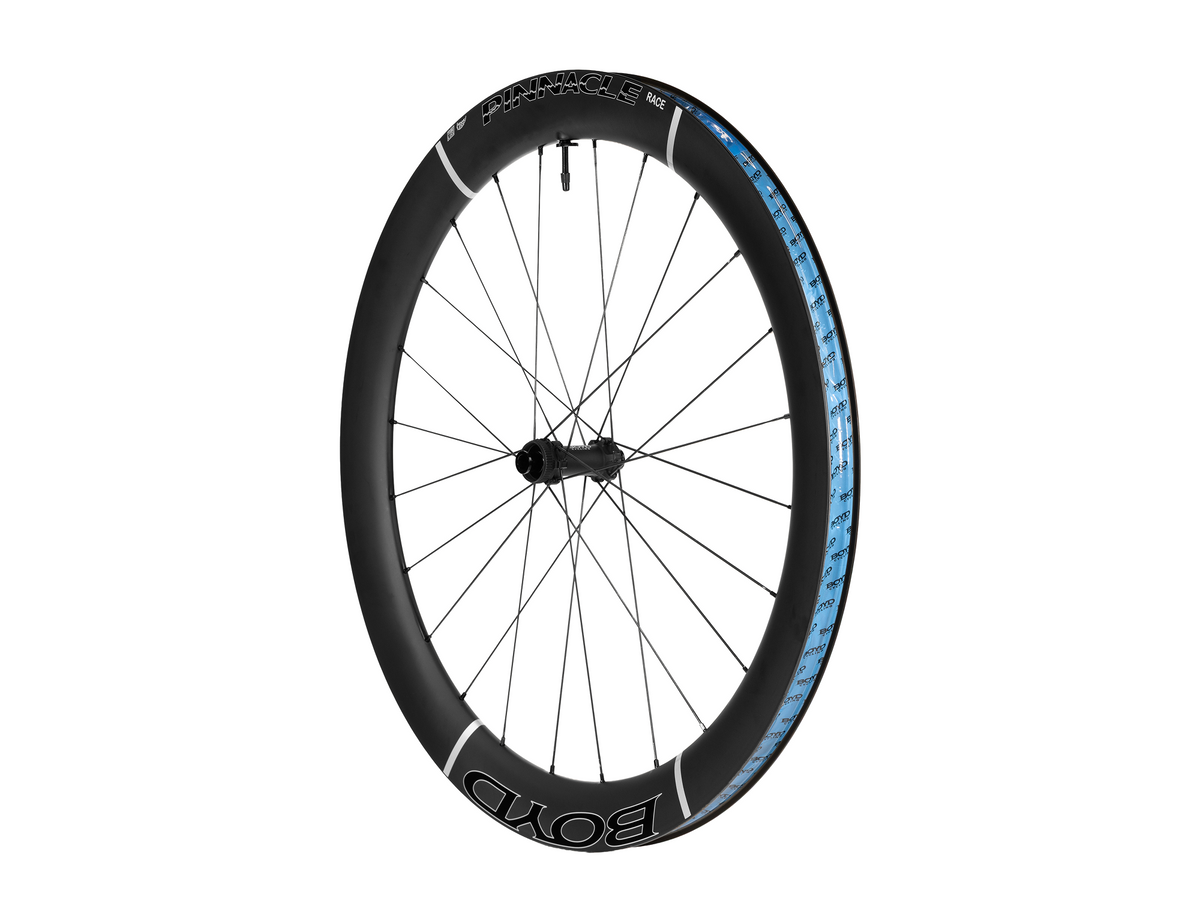

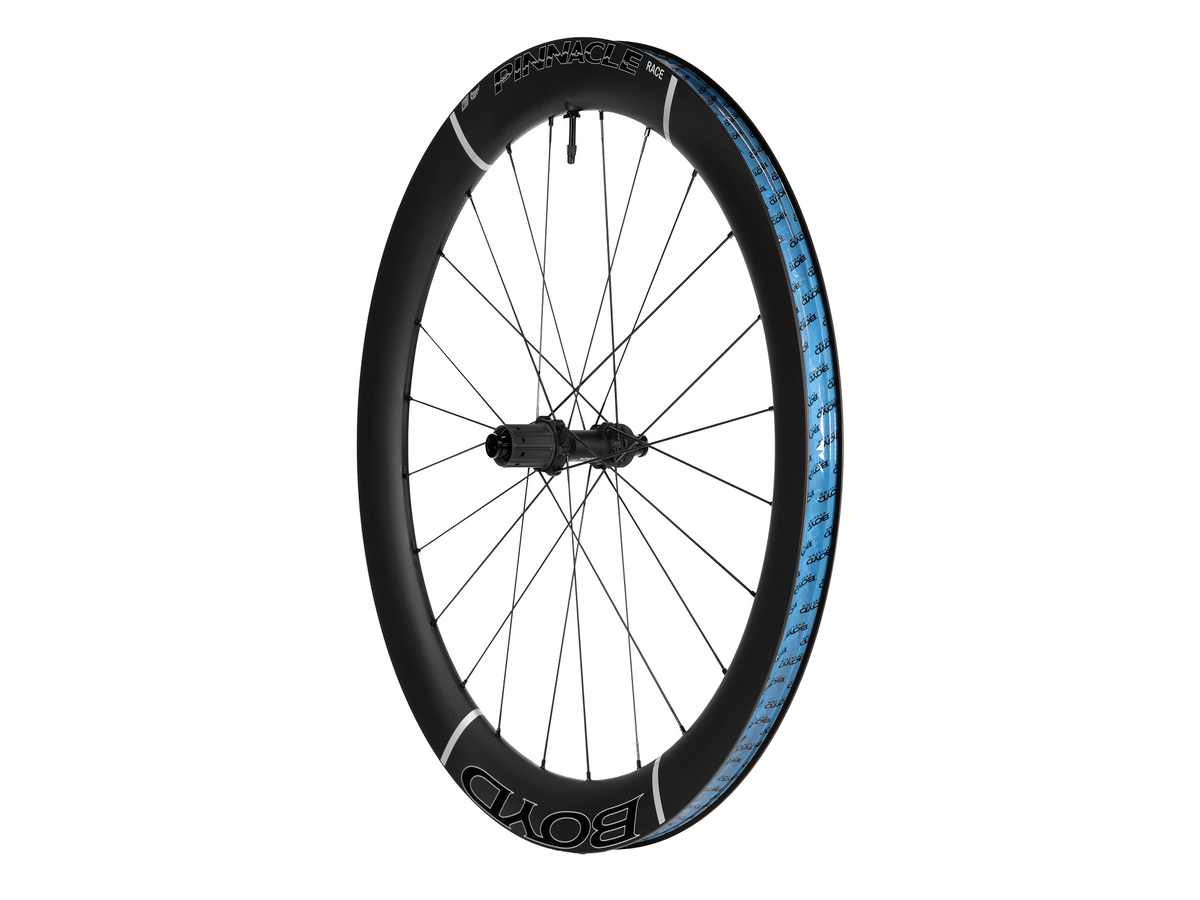

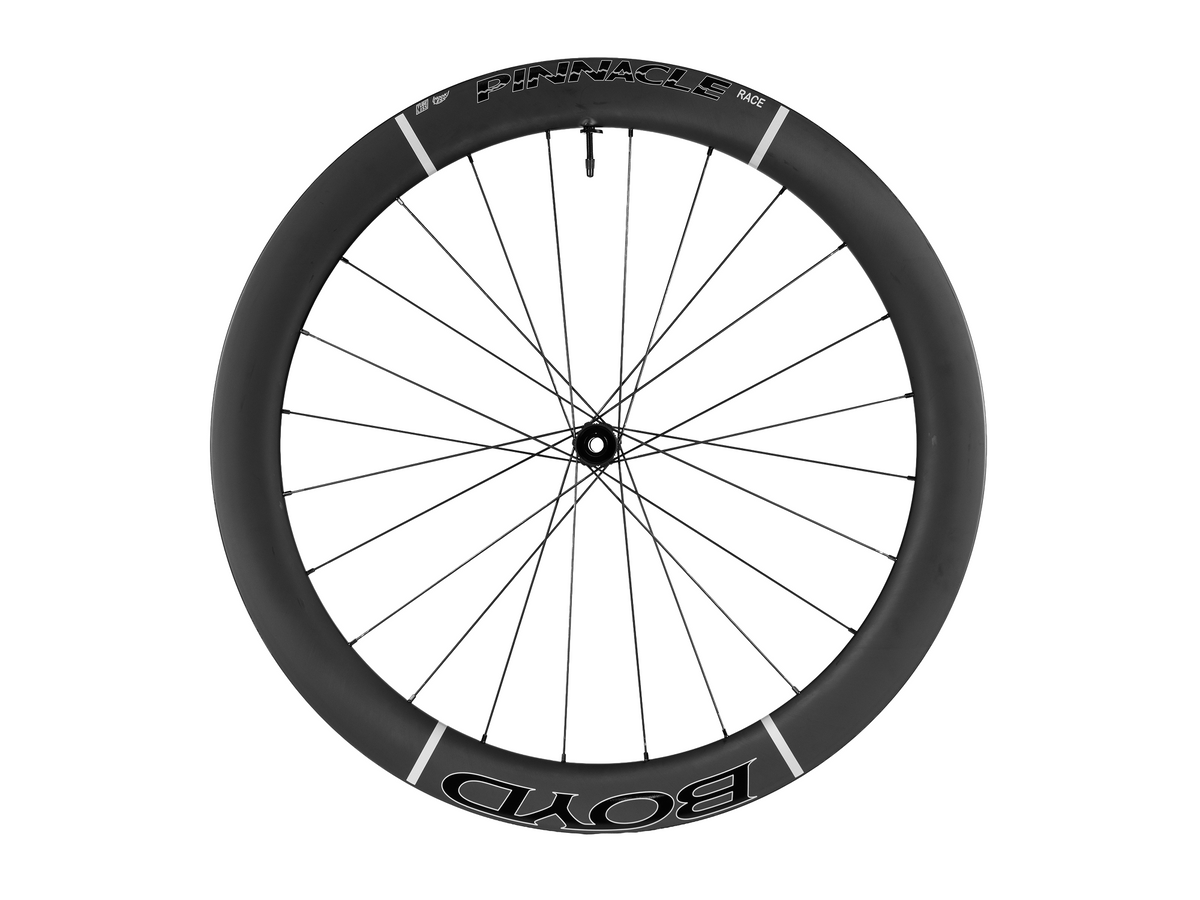

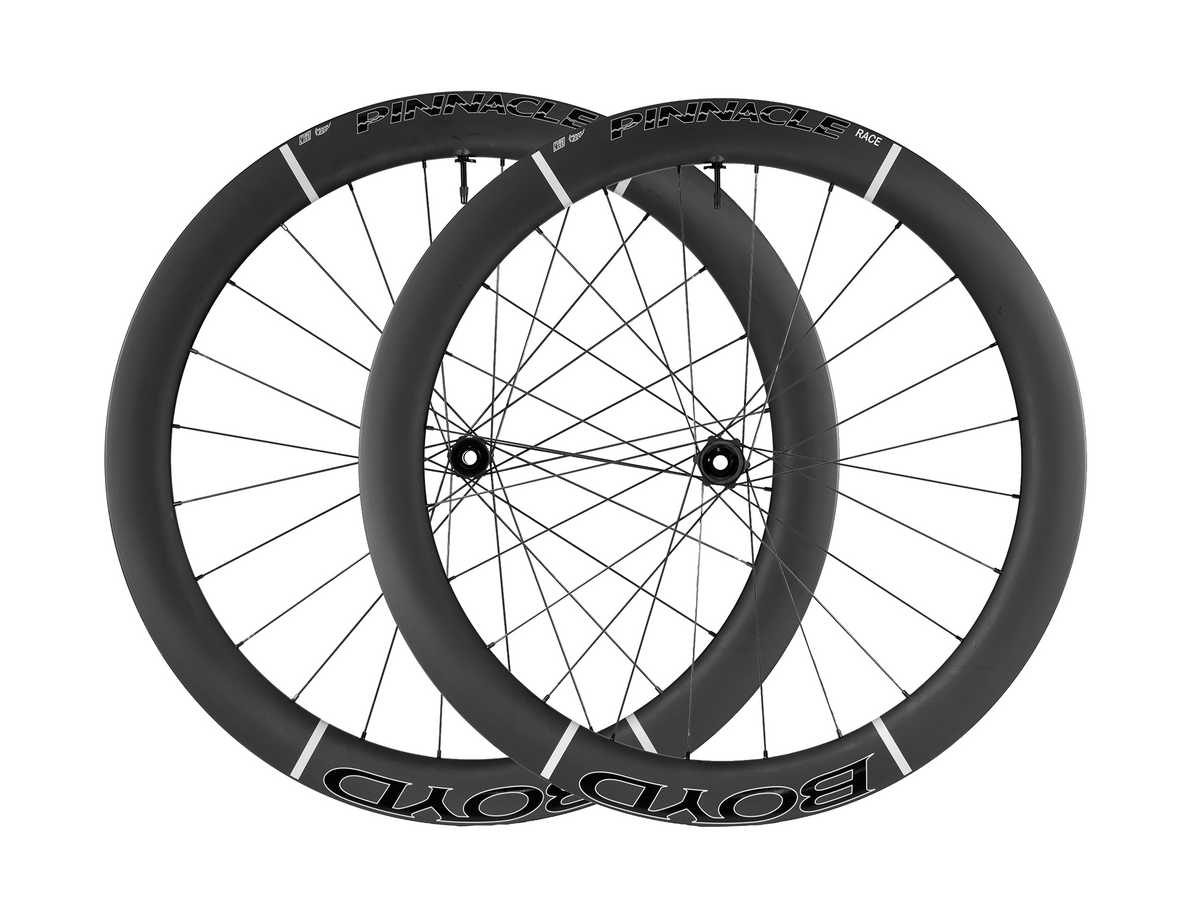

Boyd Pinnacle Race Gravel

Boyd Cycling

$2,100.00

Sold out

$2,100.00

Sold out

Description

The Pinnacle Race is the most advanced gravel wheelset we've ever created—engineered for pure speed across the roughest terrain. Built for modern gravel racing, it combines aero efficiency, extreme strength, and shockingly low weight into one uncompromising system .

If you’re chasing podiums—or pushing the limits on long, brutal gravel days—this is the wheelset that gives you the edge.

Only 1354 grams despite being one of the deepest and most aero gravel wheels in the world!

THE DETAILS

Boyd Pinnacle Race Gravel SPECS

Spec:

Spoke Count: 24 spoke front / 24 spoke rear

Rim Type: Tubeless Ready Clincher

Wheel Size: 700

Assembly: Handbuilt

Lacing Pattern: 2X both sides front, 2X both sides rear

Brake Type: Disc Brake

Hubs: Grade 54 Disc Brake Hubs

Bearings: Enduro Abec-5 LLB/LLU

Spokes: Pillar Wing 20

Nipples: Pillar double square alloy nipple

Wheel Weights: 618g front / 736g rear / 1354g set

External Width: 33mm

Internal Width: 28mm

Rim Depth: 55mm

Recommended Tire Size: 40mm+ for gravel

What's Included: Tubeless Rim Tape Installed, Tubeless Valves Installed

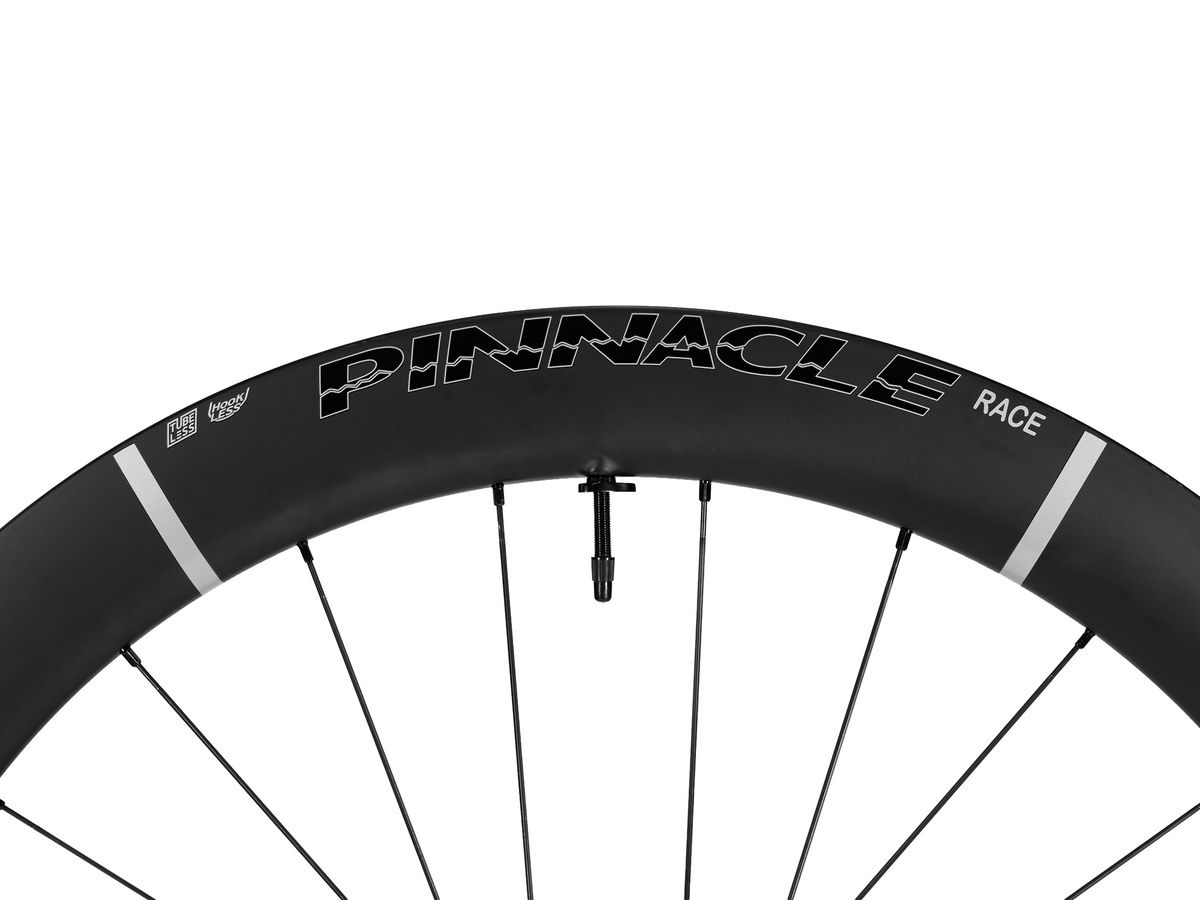

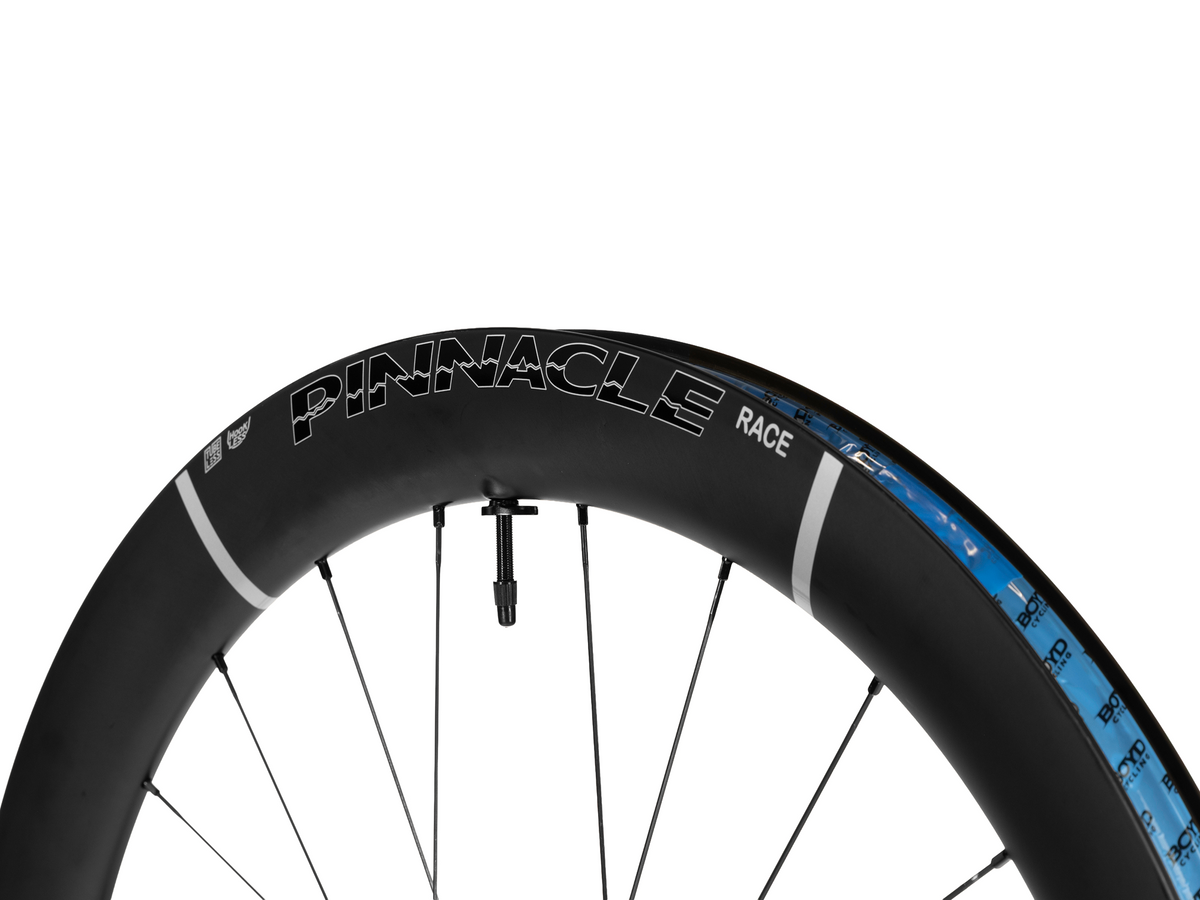

Aero Meets Gravel — 55mm Deep

Gravel just got faster.

With a massive 55mm deep carbon rim, the Pinnacle Race brings true aerodynamic performance to gravel riding. Where others sacrifice speed for durability, this wheel delivers both—cutting through wind while maintaining stability across unpredictable terrain.

On fast sections, it feels like free speed.

On long days, it means less effort, more efficiency.

Discover

Why Choose the Pinnacle Race

Boyd’s most advanced gravel race wheelset
55mm deep aero carbon rim
28mm internal width for modern 45mm+ gravel tires
Hookless design for strength and impact resistance
T1000 carbon with 150J impact strength
410g rim weight / 1354g wheelset
Grade 54 hubs with Enduro ABEC 5 bearings
Pillar Wing 20 spokes
Hand-built with lifetime warranty

Discover

Built for Modern Gravel Tires

The Pinnacle Race is designed around how gravel is actually ridden today.

28mm internal width optimized for 45mm+ tires
Improved tire profile for better traction and control
Increased air volume for confidence on rough, chunky terrain
Hookless design for strength, simplicity, and impact resistance

This is a wheel built for aggressive lines, high speeds, and real-world conditions.

Discover

Unreal Strength. Minimal Weight.

Constructed with T1000 aerospace-grade carbon fiber, the Pinnacle Race delivers a level of durability rarely seen in gravel wheels.

150 joules of impact resistance—on par with enduro MTB wheels
Just 410 grams per rim

It’s the kind of strength that lets you commit—fully—when the terrain gets rough.

Discover

Light Enough to Win

Despite its deep profile and massive strength, the Pinnacle Race weighs just 1354 grams for the complete wheelset.

That means:

Faster accelerations out of corners
More efficient climbing
Less fatigue over long distances

You’re not dragging weight—you’re carrying speed

Discover

Built to Race. Built to Last.

Every Pinnacle Race wheelset is:

Hand-built for precision and reliability
Backed by a lifetime warranty
Designed to handle the demands of elite racing and relentless training

This isn’t just a race-day wheel—it’s a season-long weapon.

Discover

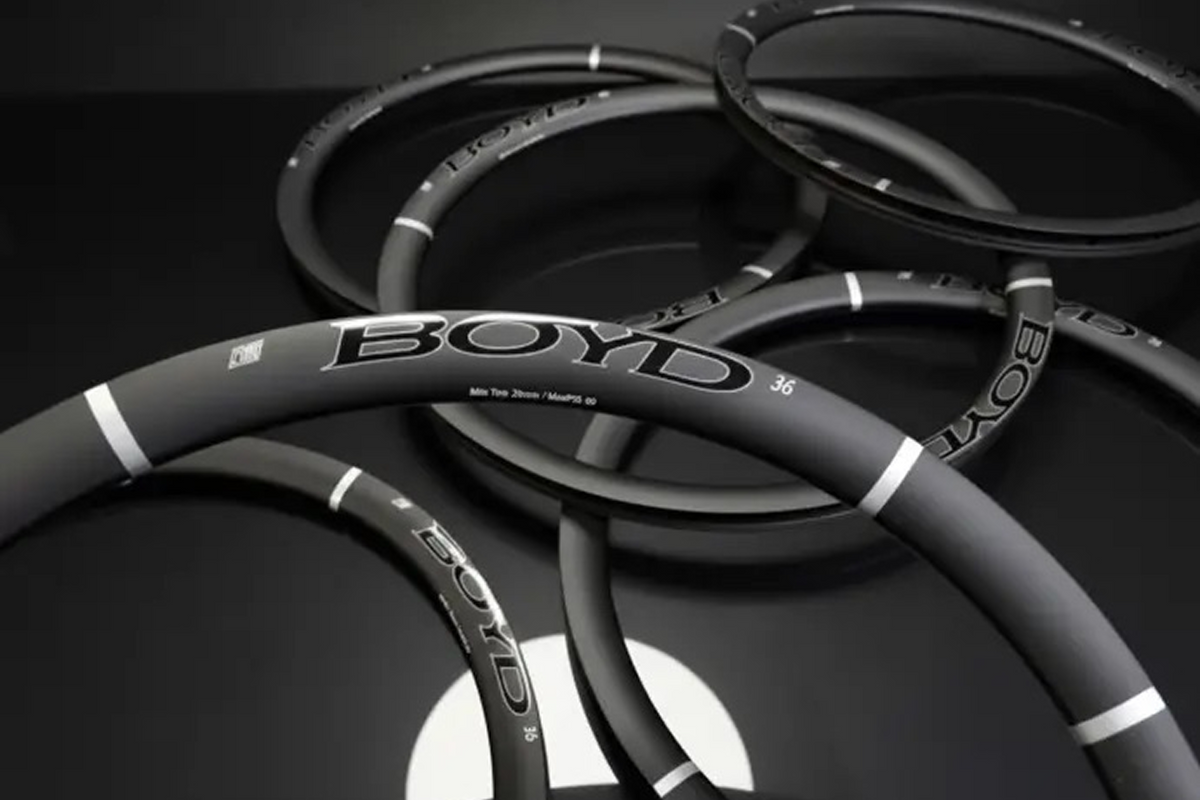

Carbon Rims

Every cut and ply of carbon plays a story in how a rim responds. Aerospace grade carbon is used in strategic places for increased strength with bringing the rim weight down to just 410 grams

Discover

Grade 54 Hubs

The new Grade 54 hubs are the most advanced hubs we've ever created. Weighing just 270 grams for the set, the hubs feature a ratchet drive system with 54 teeth and just 6.6 degrees of engagement

Discover

Enduro Bearings

The Enduro ABEC 5 bearings provide exceptional precision and durability, ensuring that the hub operates smoothly under the most demanding conditions.

Discover

Handbuilt

Every wheel goes through 5 different work centers, before being QCed for true, run out, and spoke tension. This ensures every wheel will keep running as true as the day you received them.

Discover

Grade 54 hubs

Featured in the Podium level wheels is the Grade 54 hubs featuring a straight pull flange, high strength steel ratchet with 54 teeth giving 6.6 degrees of engagement, and the low weight to help you fly up the steepest of hills.

Key features of the Grade 54 hubs include

54t ratchet hub wheelset
6.6 degree engagement hubs
Enduro ABEC 5 LLU/LLB bearings
Centerlock disc brake rotor mounting
Quick swap freehub wheelset
Tool-free service and parts swapping
7075-T6 aluminum alloy axles
Multiple drivers available
Forged and CNC’d 6061-T6 heat-treated aluminum hub shell
